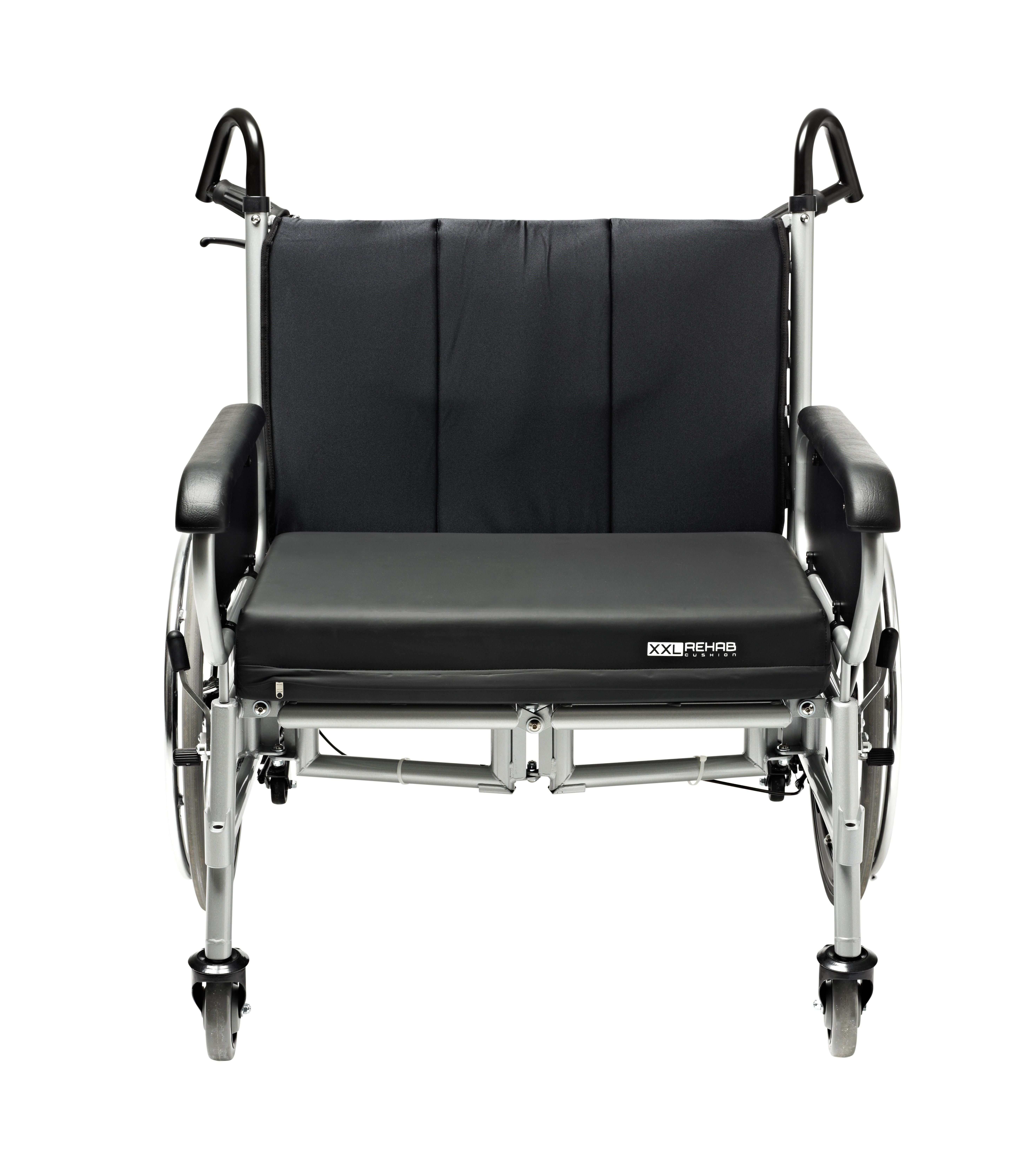

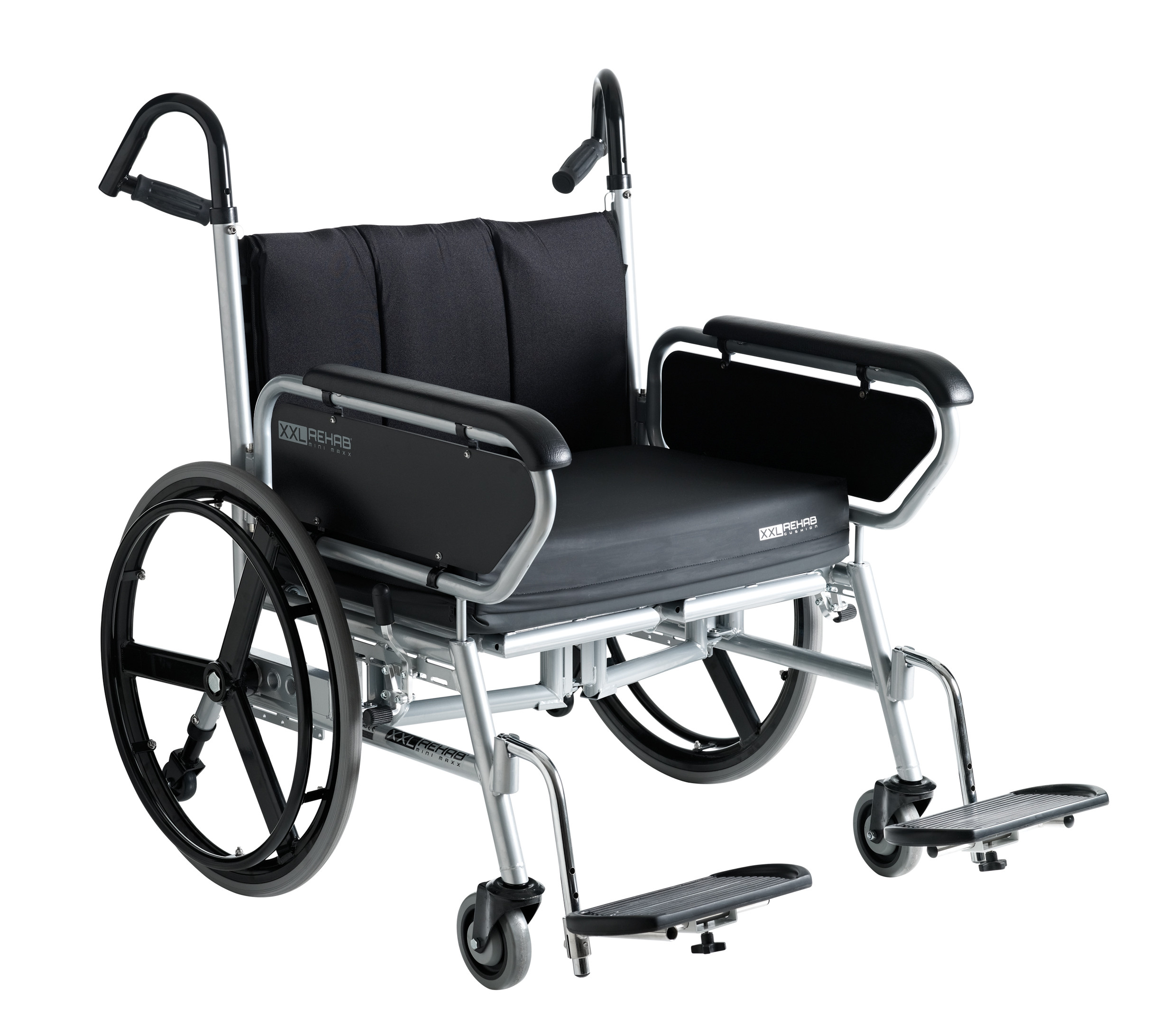

Key features
- Strong and durable frame made with chromium molybdenum steel
- Comes with viscoelastic and spring base comfort cushion for pressure relief
- Long armrests help with getting in and out of the chair
- Low seat height provides easy access to the chair
- Adjustable balance point for extra stability
- Anti-tipper bars
- Swing-away and removable PU padded armrests
- Height and angle adjustable push handles make it easy to push
- Footrests can swing away and are removable. Width adjustable to 1100mm apart, they support up to 100kg each

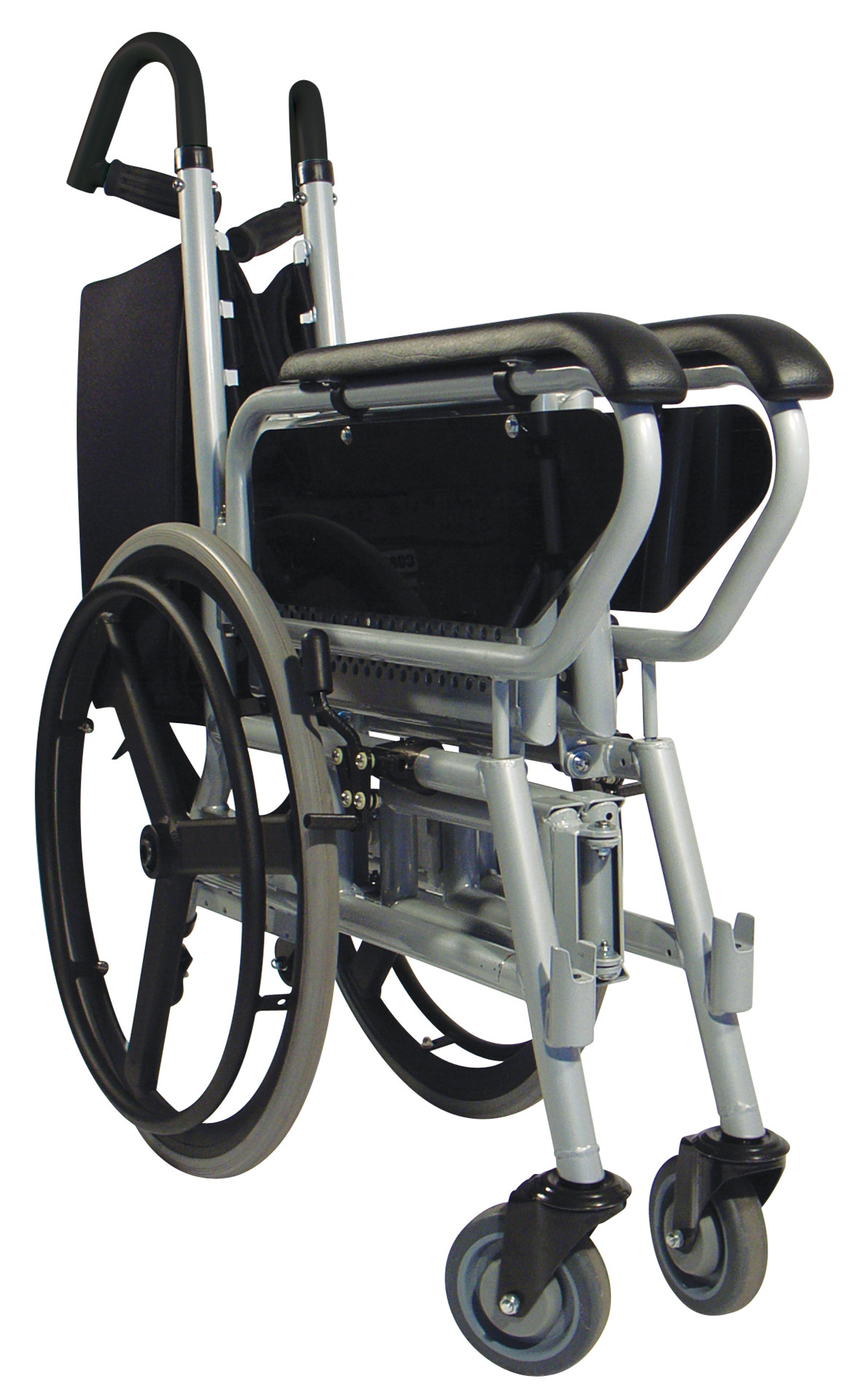

- Folds for transport and storage
- 125mm nylon with PU front castors
- 600mm solid PU rear wheels
Specifications
| Code(s) | 9546 | 9547 | 9548 |
| W 610mm | W 660mm | W 710mm | |
| Safe working load | 325kg | 325kg | 325kg |
| Overall dimensions | W 850mm D 1160mm H 1100mm | W 900mm D 1160mm H 1100mm | W 950mm D 1160mm H 1100mm |
| Seat dimensions | W 610mm D 460mm H 430mm | W 660mm D 460mm H 430mm | W 710mm D 460mm H430mm |
| Folded width | 410mm | 410mm | 410mm |
| Back height | 510mm | 510mm | 510mm |
| Product weight | 27kg | 27kg | 27kg |
Cobi Rehab brochure
User Manual
Information sheet
Key features
- Strong and durable frame made with chromium molybdenum steel
- Comes with viscoelastic and spring base comfort cushion for pressure relief
- Long armrests help with getting in and out of the chair
- Low seat height provides easy access to the chair
- Adjustable balance point for extra stability
- Anti-tipper bars
- Swing-away and removable PU padded armrests
- Height and angle adjustable push handles make it easy to push
- Footrests can swing away and are removable. Width adjustable to 1100mm apart, they support up to 100kg each
- Folds for transport and storage
- 125mm nylon with PU front castors
- 600mm solid PU rear wheels
| Code(s) | 9546 | 9547 | 9548 |
| W 610mm | W 660mm | W 710mm | |
| Safe working load | 325kg | 325kg | 325kg |
| Overall dimensions | W 850mm D 1160mm H 1100mm | W 900mm D 1160mm H 1100mm | W 950mm D 1160mm H 1100mm |
| Seat dimensions | W 610mm D 460mm H 430mm | W 660mm D 460mm H 430mm | W 710mm D 460mm H430mm |
| Folded width | 410mm | 410mm | 410mm |
| Back height | 510mm | 510mm | 510mm |
| Product weight | 27kg | 27kg | 27kg |
Cobi Rehab brochure
User Manual
Information sheet
Need a hand choosing the right product for you?
Our customer support team are available Monday to Friday to help answer your questions.
Related parts
-
Special order
![]()

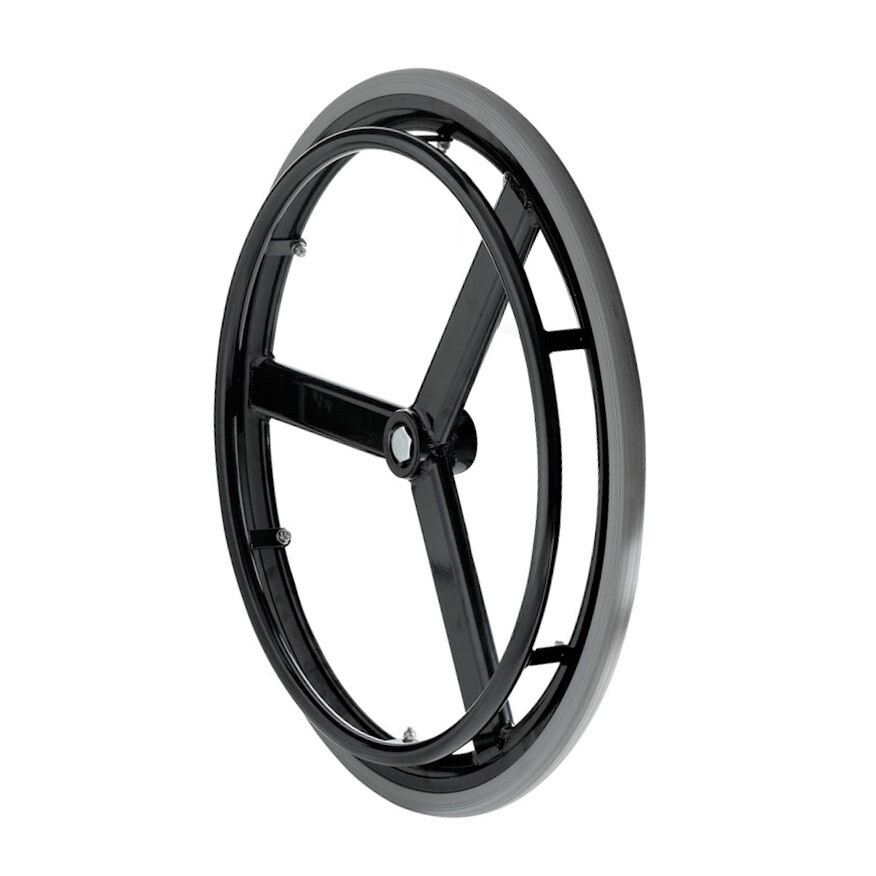

Rear Wheel 24" to suit XXL Cobi-Rehab Minimaxx
- Code(s): ZZ9546006
-
Special order
![]()
Footplate complete R/H to suit XXL Cobi-Rehab Minimaxx
- Code(s): ZZ9546002
-
Special order
![]()
Footplate complete L/H to suit XXL Cobi-Rehab Minimaxx
- Code(s): ZZ9546001
-
Special order
![]()
Castor 125mm to suit XXL Cobi-Rehab Minimaxx
- Code(s): ZZ9546005
